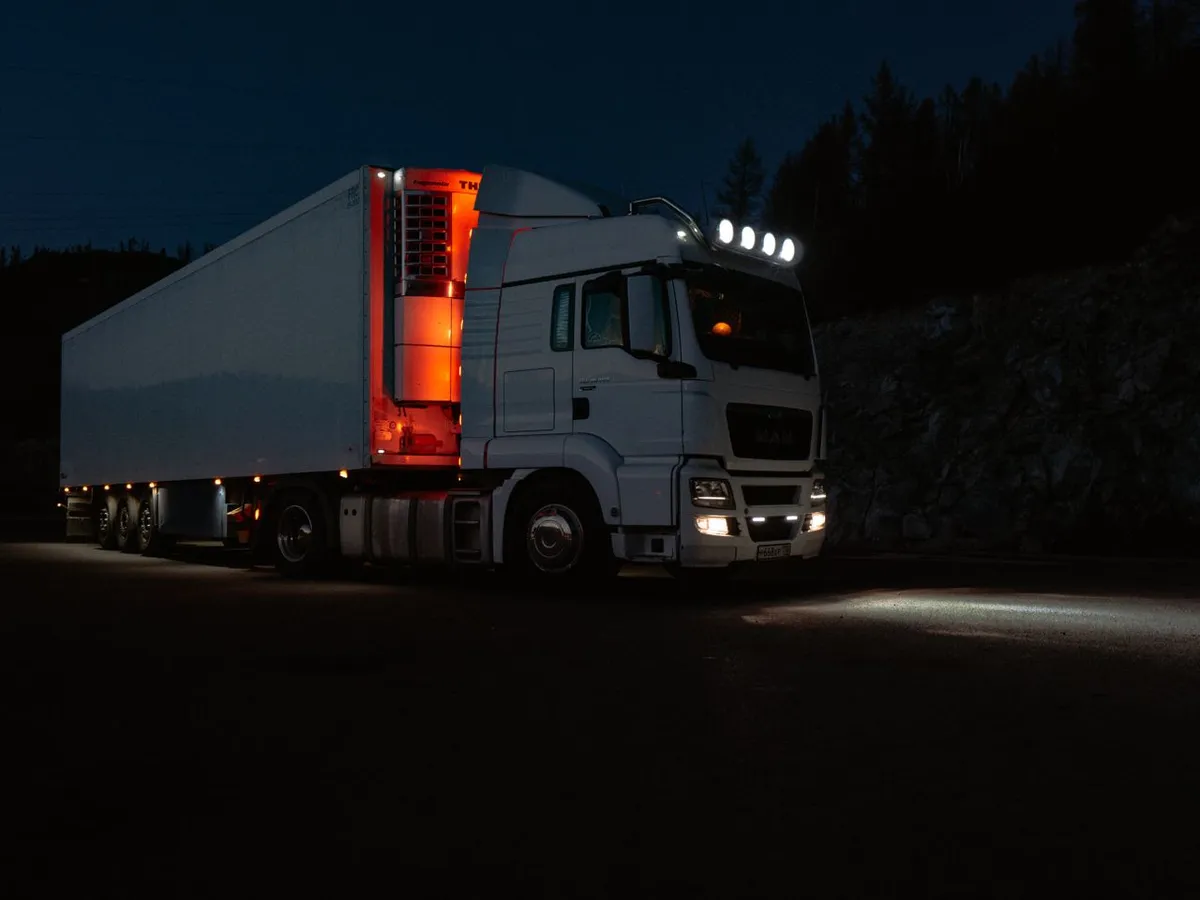

Trailer Lighting & Wiring Guide: LEDs, Wiring & Regulations

Trailer LED Lighting: Why It's Now the Default

Trailer LED lighting has replaced incandescent bulbs as the standard fitment on new trailers for reasons beyond just brightness. LEDs draw a small fraction of the current an incandescent bulb needs, which matters on a trailer running a long wiring run back from the tractor where voltage drop over distance is already a factor. They also last many times longer under the vibration and thermal cycling a trailer light assembly experiences daily, which means far fewer roadside bulb failures and warning-light callbacks for a fleet.

The catch is that LED lighting is more sensitive to wiring quality than incandescent bulbs were. A poor ground connection or an undersized wire that an incandescent bulb would simply run dimmer on can cause an LED circuit to flicker, strobe, or trip a modern tractor's trailer light fault monitoring — which then reads as a lighting fault even though the LED units themselves are fine. When retrofitting a trailer from incandescent to LED, it's worth checking the wiring harness condition and ground points at the same time rather than assuming the existing wiring is automatically compatible.

Reading a Trailer Wiring Diagram

A trailer wiring diagram maps which wire color and circuit controls which light function — typically brown for tail/marker lights, yellow for the left turn signal, green for the right, red for brake lights, white for ground, and blue for an auxiliary circuit where fitted — though color conventions do shift somewhat between North American, European, and other regional standards. Before troubleshooting a lighting fault or wiring a new lighting and electrical harness, confirm which color convention the trailer was built to, since assuming the wrong standard is a common cause of miswired brake and turn circuits that only show up once the trailer's on the road at night.

Diagnosing a fault starts at the plug end and works back — check for continuity and correct voltage at the connector first, then trace toward the light assembly showing the fault, rather than starting by pulling apart the light itself. Most lighting complaints trace back to a connector or a ground point rather than a failed LED unit, so following the wiring diagram methodically saves replacing a perfectly good light assembly that was never actually the problem.

7 Pin Trailer Plug and Electrical Connector Types

The 7 pin trailer plug is the most common trailer electrical connector for combined lighting, brake, and auxiliary circuits, but the pinout — which pin carries which function — differs between the main standards in use, including SAE-style flat 7-pin connectors common in North America and round 7-pin connectors following European conventions. Wiring a new plug or replacing a damaged one without first confirming which pinout standard the trailer and tractor both expect is one of the fastest ways to end up with brake lights that fire on turn signals or vice versa.

Beyond the standard 7 pin plug, some fleets run additional connectors for auxiliary circuits — reverse lights, ABS diagnostic signals, or auxiliary power — which adds pins or requires a second connector alongside the main 7 pin plug. When ordering a replacement connector, specify both the pin count and the specific standard (flat vs round, and which regional pinout convention) rather than just '7 pin,' since a physically compatible plug with the wrong internal pinout will connect but wire the wrong functions together.

Types of Trailer Plugs, Wire Connectors, and Semi-Truck Trailer Wiring Diagrams

Beyond the standard 7 pin trailer plug covered above, the broader category of types of trailer plugs in everyday use spans several pin counts and physical formats, and picking the right one depends on what circuits the trailer actually needs. A 4-pin flat connector is the simplest, carrying only ground, tail/marker lights, and a combined left and right turn/brake signal — enough for a basic light-duty trailer with no separate brake controller or auxiliary circuit. A 5-pin flat connector adds one more circuit, typically a dedicated reverse light or an auxiliary 12V feed, on top of the same ground and lighting circuits as the 4-pin. A 6-way round connector steps up further, splitting the combined turn/brake signal into separate left and right circuits and adding a 12V charge line, and is common on campers and mid-size utility trailers running an onboard battery. The 7-way round or blade connector is the most capable light-to-medium-duty option, adding a dedicated electric brake controller circuit on top of everything the 6-way carries, which is why it's the standard connector for anything towing with electric trailer brakes. Among types of trailer wire connectors, the 7-way is also the one most often confused across standards, since a 7-way RV blade connector and the heavy-duty round-pin connector used on semi-tractors both carry seven circuits but aren't wired to the same pinout or built to the same physical spec, so a plug that physically fits doesn't guarantee the wires underneath do the same job.

For heavy-duty tractor-trailer combinations specifically, the connector referenced in most semi truck trailer wiring diagram and semi trailer plug wiring diagram searches is the SAE J560 7-way, a round-pin connector mounted at the back of the tractor and the nose of the trailer. Reading a semi truck trailer plug wiring diagram for this connector comes down to the same seven circuits published across most reference charts for this standard: pin/wire 1 (white) is ground, pin 2 (black) is auxiliary power, pin 3 (brown) carries the tail, marker, clearance, and license-plate lights, pin 4 (red) carries the electric brake controller signal, pin 5 (green) carries the right turn signal and right stop light, pin 6 (yellow) carries the left turn signal and left stop light, and pin 7 (blue) carries the reverse/backup lights. Confirming continuity on each of these seven circuits, in that order, is the fastest way to diagnose a semi-trailer that won't light up correctly after a new connector or harness install, rather than guessing at wire colors from memory.

European truck-trailer combinations typically run a different pair of connectors instead of the SAE J560. ISO 1185, commonly called the 24N (normal) connector, is a 7-pin plug carrying the same basic lighting functions, tail, marker, brake, turn, and reverse, as the SAE 7-way, but with its own ISO-defined pin numbering and housing that isn't physically interchangeable with the American standard. Alongside it, ISO 3731 defines a 15-pin connector, sometimes called the 24S (supplementary) connector, that carries additional circuits beyond basic lighting, most importantly the signal and power lines for trailer ABS and EBS electronic braking systems, along with any other auxiliary circuits the combination needs. A European tractor-trailer will typically run both connectors side by side, the 24N handling lighting and the 24S handling brake electronics, whereas a North American combination consolidates everything into the single 7-way SAE J560 plug plus a separate ABS power/diagnostic connector where electronic braking is fitted.

Side Marker Lights and Tail Light Assembly

Side marker lights serve a specific visibility function distinct from tail and brake lights — they make the trailer's length and presence visible from the side to crossing or merging traffic, particularly important on long trailers and combination units where the rear lights alone don't convey the full vehicle length. Placement and spacing requirements for side marker lights are typically specified by regulation rather than left to design preference, with maximum spacing intervals along the trailer's length and minimum mounting height off the ground.

The tail light assembly at the rear combines several functions in one housing — tail/marker, brake, turn signal, and often reverse — and needs to be checked as a complete unit during maintenance rather than bulb by bulb, since a cracked lens or degraded seal lets moisture into the housing and causes intermittent faults across multiple functions in that assembly at once, not just the function that first shows a problem. When a tail light assembly starts showing moisture fogging inside the lens, it's usually more cost-effective to replace the full assembly than to chase individual circuit faults inside a compromised housing.

Trailer Light Regulations and ECE Compliance

Trailer light regulations vary by market but generally specify photometric output (how bright and in what pattern the light must shine), lens color for each function, minimum and maximum mounting height, and required spacing between marker lights along the trailer's length. These aren't cosmetic guidelines — a light assembly that looks correct but doesn't meet the photometric or placement spec for its market can fail a roadside inspection or, more importantly, fail to actually communicate the trailer's presence and intentions to other drivers the way the regulation intends.

ECE regulations trailer lights govern compliance across markets that follow the ECE type-approval framework, specifying detailed photometric curves, approved lens colors, and E-mark certification requirements that a light assembly must carry to be legally fitted. When specifying replacement lighting for export to an ECE-regulated market, confirm the specific ECE regulation number the light is approved under and that it carries the E-mark, rather than assuming any LED assembly labeled 'DOT' or generic '12V/24V' automatically satisfies ECE requirements — the standards test different things and aren't interchangeable certifications. For wiring harness installation alongside new lighting, route and secure the harness away from moving suspension components and chafe points, and use grommets at any point the harness passes through sheet metal, since a chafed wire is one of the most common causes of intermittent lighting faults traced back to installation rather than the light itself.
