Trailer Turntables & Slewing Rings

What a Trailer Turntable and Slewing Ring Do

A trailer turntable is the pivot point that lets a dolly, low-bed, or extendable trailer steer or rotate independently of the load riding on top of it. Underneath the turntable plate sits a slewing ring — a large-diameter ball or roller bearing that carries the full vertical load of the trailer and cargo while still turning freely enough for the steering axle or converter dolly to track a corner without dragging the tires sideways.

On a converter dolly, the turntable lets the dolly's drawbar steer into a curve while the trailer bed above stays aligned with the truck — without it, every turn would scrub the tires and fight the driver's line. On a low-bed or extendable trailer carrying an off-center or oversized load, the turntable and its slewing ring take the concentrated point load where the gooseneck or rear bogie pivots, which is a different and often heavier duty than the steering role on a dolly. We build turntables for both jobs, and the load rating and bearing size we spec is the first thing that differs between them — a dolly turntable optimized for smooth steering under moderate load isn't the same part as a slewing ring rated for a 60-tonne low-bed pivot point, even though both get called a turntable bearing on a parts list. Whatever label shows up on a purchase order — turntable for trailer steering, semi trailer turntable, or slewing ring — the part is doing the same pivoting job under the frame; what changes across applications is load rating and rotation range, not the basic design.

Slewing Ring Construction: Raceway, Balls, and Seals

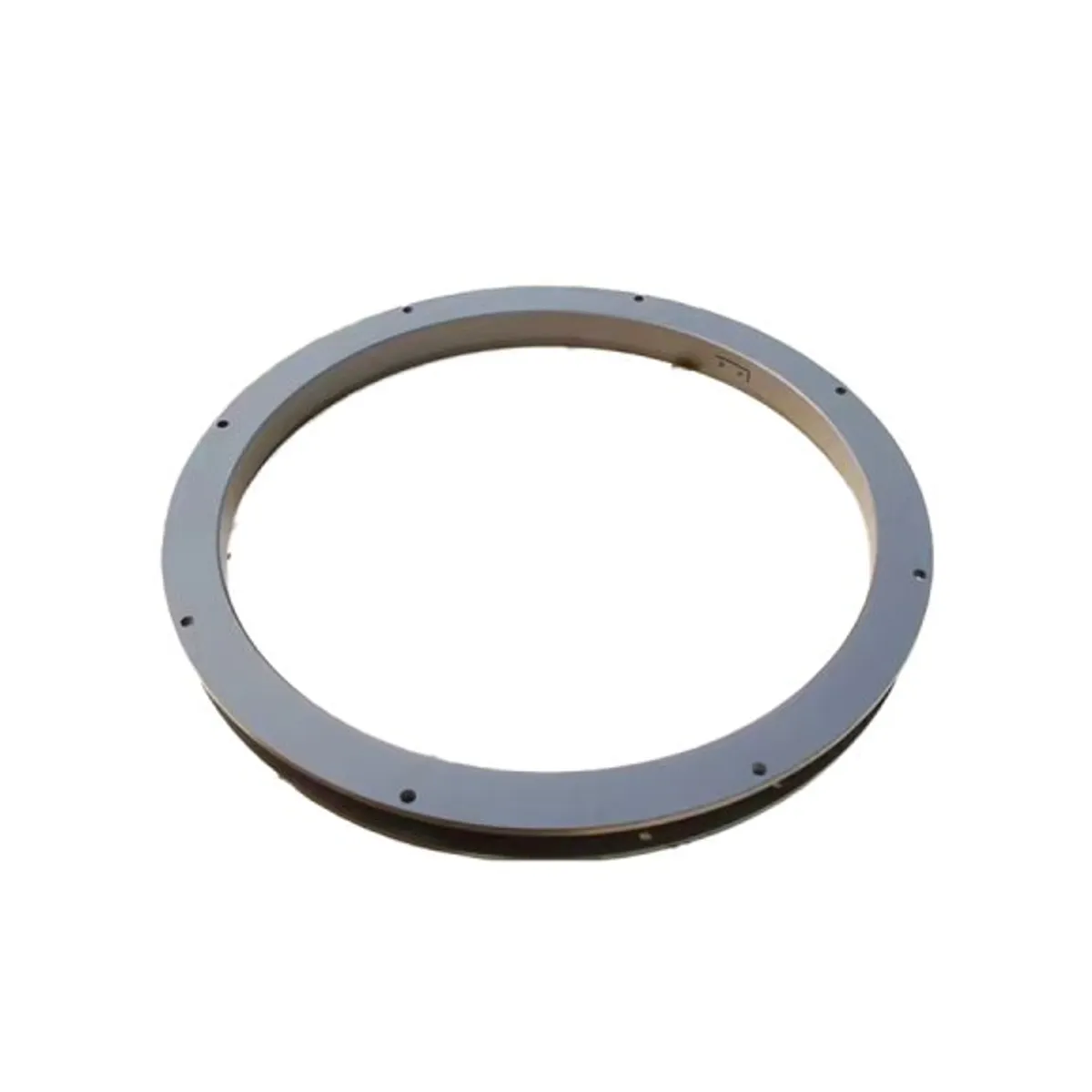

The slewing ring itself is two steel rings — inner and outer race — separated by a row of hardened balls or rollers that carry the load while letting the rings rotate against each other. We through-harden the raceway surface specifically, because a soft raceway under a heavy static load (a loaded trailer parked and not moving for hours) will brinell — leave permanent dents from the balls — long before it ever wears out from rotation itself. That failure mode is invisible on a spec sheet and only shows up as a rough, notchy turntable a year or two into service, so raceway hardness is one of the numbers we don't cut corners on.

Sealing matters as much as the raceway. A slewing bearing running under a trailer sits exposed to road grit, water, and de-icing salt in a way a machine-mounted bearing in a factory never does. We fit a double-lip seal as standard and offer a sealed-for-life grease fill for fleets that don't want a grease nipple on the maintenance schedule, alongside the standard greasable version most repair orders call for since it's easier to service in the field with a hand gun.

Turntable Applications: Dollies, Low-Beds, and Extendable Trailers

Converter dollies use a smaller-diameter turntable focused on steering geometry — the bearing needs to rotate smoothly under moderate load far more than it needs to carry extreme tonnage, so we spec a lighter raceway and tighter tolerance for steering precision on this application. Low-bed and lowboy trailers hauling heavy equipment put the turntable at the gooseneck or the rear bogie pivot and load it far harder, which calls for the heavier slewing ring class with a raceway sized to the trailer's full rated capacity, not just its steering function.

Extendable and modular trailers — the ones that telescope out to carry long loads like wind turbine blades or precast beams — often need a turntable that also locks in position once extended, since the pivot has to hold dead straight under a long overhung load instead of turning freely like a dolly. We build the locking pin and swivel plate detail into these to spec, because a turntable that can't be locked square defeats the purpose of an extendable frame built to carry an off-balance load in the first place.

Agricultural trailer turntables sit at the light end of the same range — a farm trailer's steering pivot carries far less load and turns at lower speed than a highway dolly, so we spec a lighter raceway and a standard grease seal rather than the heavier bearing class a highway low-bed needs, keeping cost down where the extra capacity isn't doing any work.

Matching Load Rating to Your Trailer

The number that matters most on a turntable bearing order is static and dynamic load rating, not bearing diameter — two turntables can look the same size on a drawing and carry very different tonnages depending on raceway hardness, ball diameter, and race wall thickness. We size the slewing ring to the trailer's GVW and axle configuration a customer sends us, rather than selling off a fixed size chart and letting the buyer guess whether it covers their load. A 3500kg turntable trailer bearing is a common spec point for smaller farm trailers and light converter dollies, while highway low-beds and multi-axle modular trailers need ratings many times higher — which is exactly why we size to GVW and axle configuration rather than selling off one generic turntable size.

Swivel plate diameter and bolt pattern are the second variable, and this is where retrofit orders most often go wrong — a slewing ring rated correctly for the load but bolted to a plate that doesn't match the existing frame holes just sits in the warehouse. We machine the swivel plate to a customer's bolt-hole drawing or a sample plate, matched to both the trailer manufacturer's original spec and our axle and suspension range for full-dolly and low-bed builds.

Custom Turntables and Bulk Supply

Dolly and trailer builders order turntables in production runs matched to a chassis build schedule; repair shops and fleet owners order single units to replace a worn or brinelled slewing ring on a trailer already in service. We supply both, and for repair orders we can machine to match an existing turntable's bolt pattern and outer diameter from a sample or dimensioned sketch when the original manufacturer's part number is no longer available.

For fleets standardizing spares, turntable bearings pair naturally with our landing gear and spare parts kits lines — most low-bed and dolly rebuilds touch all three at once. Full sizing guidance is in our turntable and slewing ring buying guide.
