Container Corner Castings

What a Container Corner Casting Does

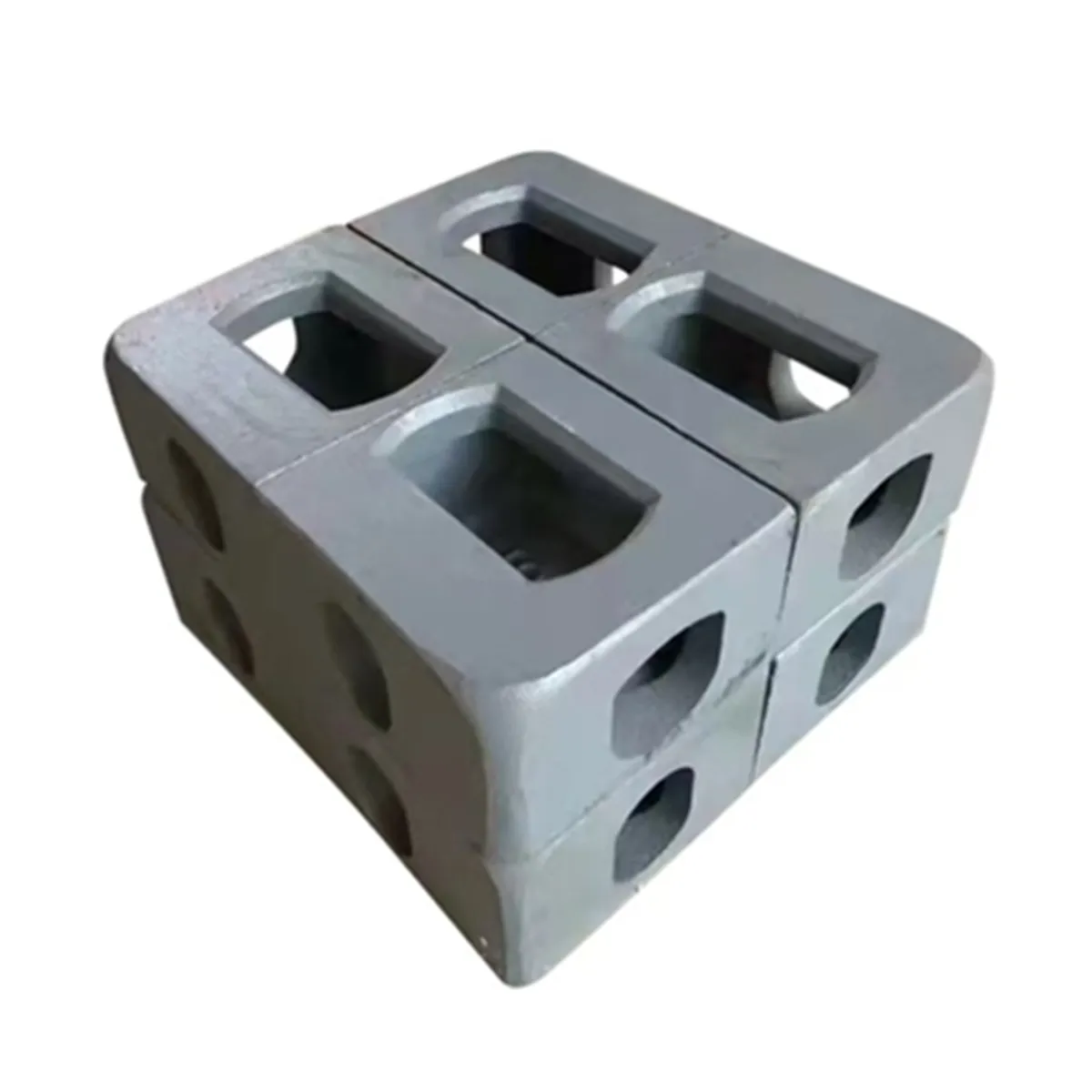

A corner casting is the cast-steel fitting welded into each of the eight corners of a shipping container frame — four top, four bottom — and it carries every load the container sees: lifting by crane spreader, stacking weight from boxes above it, and the clamping force from a twist lock holding it to a chassis bolster. Get the corner casting wrong and none of the rest of the container's structure matters, because it's the only point of contact between the box and everything that lifts, stacks, or hauls it.

Bottom corner castings take the compression load when containers stack in a yard or on a vessel, and they're also where a twist lock locks in during road transport — so the aperture geometry on a bottom corner casting has to match both a crane spreader's twist-lock and a trailer's twist lock without needing two different fittings. Top corner castings take the crane spreader load during lift and the stacking cone from the container above, plus lashing point duty on deck at sea. We cast and machine both to the same ISO 1161 aperture on every corner casting we ship, because a container that passes through three modes of transport can't afford a fitting that only works with one of them.

The casting also carries the structural weld that ties it to the container's corner post and rail — a corner fitting that's cast to spec but poorly prepared for welding still leaves a weak point in the frame. We bevel and machine the weld face on every unit before it leaves the shop, so the fabrication crew on the other end is welding to a clean, consistent edge rather than grinding a rough casting to fit.

Cast Steel vs Forged Corner Fittings

Most corner castings, ours included, are cast rather than forged — casting lets us hold the complex internal geometry of the aperture, the stacking cone recess, and the weld flange in one pour, which forging can't do economically at this part's size and shape. The steel grade matters more than the process here: we cast in a low-alloy steel chosen for weldability first, because a corner casting that's hard to weld cleanly into a container frame creates more problems on the fabrication floor than it solves in raw strength.

Every casting run goes through the same discipline — controlled pour, normalizing heat treatment to relieve casting stress, then machining the aperture and weld face to tolerance. Skipping the heat treatment step is the shortcut some cut-rate corner casting suppliers take, and it shows up later as castings that crack under repeated stacking load rather than on day one, which makes it a hard defect to catch before it's in the field. We test a sample from every batch under load before releasing the run, and can supply the test record with the shipment for customers who need it for their own container certification paperwork.

ISO Corner Casting Fit with Twist Locks

An ISO corner casting is only useful if the aperture it presents actually locks with the twist lock and spreader hardware a fleet already runs, which is why we hold every corner fitting to ISO 1161 aperture dimensions rather than a house tolerance. The standard fixes the oval hole size, the internal step the twist lock cone seats against, and the wall thickness around the opening — three numbers that have to agree with whatever twist lock or crane spreader shows up in the yard, sometimes years after the container itself was built.

We machine our corner castings on the same line as our twist locks, which means a customer ordering both from us gets a matched aperture-to-cone fit rather than two ISO-compliant parts that technically pass spec but bind slightly against each other in the field — a mismatch that's common enough industry-wide that it's worth asking any corner casting supplier directly whether they've checked fit against a real twist lock sample, not just a drawing.

Corner Castings for Flat Racks, Platforms and Special Frames

Standard dry van containers aren't the only frames that need a corner casting. Flat rack containers, open platforms, and tank container frames all use the same ISO 1161 corner geometry so they stack and lock with standard equipment, but the casting itself often needs a different wall thickness or reinforcement pad to handle the concentrated point loads a flat rack sees when cargo isn't spread evenly across the deck like it is in a boxed container.

We cast corner fittings to the standard geometry as the default, then adjust wall section and add reinforcement where a customer's frame design calls for it — chassis builders and container fabricators send us a frame drawing and we cast to match rather than forcing every frame into one generic corner casting spec. This comes up most often on custom flat rack builds and repair orders replacing a damaged corner on an older frame where the original casting spec is no longer in production.

Fabrication Fit-Up and Bulk Supply

Container fabricators and chassis builders order corner castings by the container-load, matched to a production schedule rather than a one-off repair. We supply top and bottom sets together, pre-matched in aperture tolerance so a fabrication line isn't sorting through a mixed batch to find fittings that pair correctly on the same frame.

For repair and retrofit orders — replacing a corroded or cracked corner casting on a container already in service — we also supply single units or small sets, and we can match an older casting profile from a sample or photo when the original supplier's spec isn't available anymore. Combined with our fasteners and spare parts kits, a fleet or fabricator can source corner castings, twist locks, and the bolts to weld and mount them in one order rather than three.
